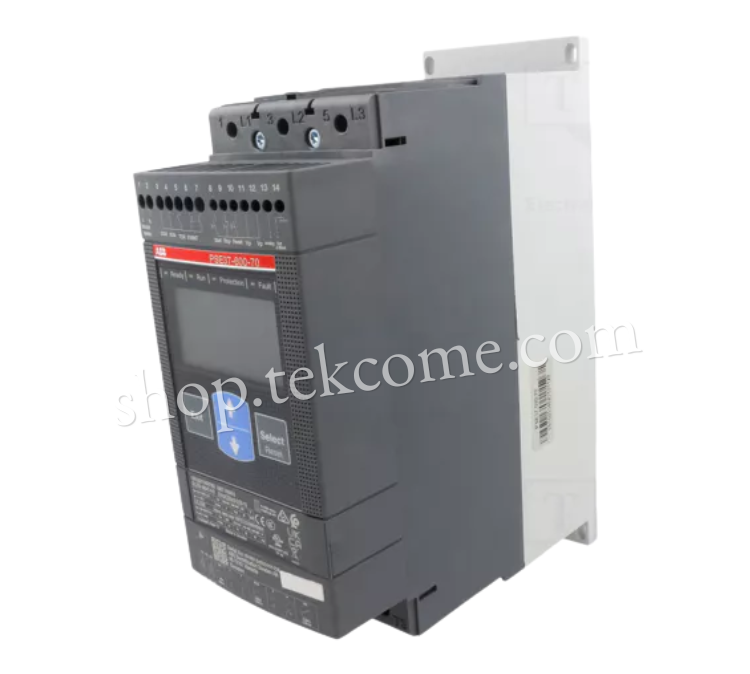

ABB PSE37-600-70 1SFA897104R7000 (37A, 600V)

PSE37-600-70 Softstarter - 37 A - 208 ... 600 V AC  Softstarters
The softstarter PSE37-600-70 has a rated maximum operational current of 37 A with an operating voltage span from 208...600 V AC. The rated control voltage is between 100...250 V AC at 50/60 Hz. PSE features a two-phase control with a soft start and stop through a voltage or a torque ramp. It has built-in bypass for easy installation and energy saving. A RUN, TOR, and Event signal is available from a relay output in NO (normally open state). The PSE has functions such as current limit, kickstart, analog output, EOL, underload, and locked rotor protection. To interact with PSE, it has an Illuminated display that uses symbols to become language neutral. As an option, you can add an identical external keypad with a rating of IP66. There are three ways to communicate with PSE. It can be done by hardwire inputs Start/Stop or by Reset of fault. Another popular option is the built-in fieldbus communication Modbus RTU. You can also use an external adaptor and a Fieldbus plug. PSE is a true general purpose softstarter. It’s a perfect balance between high starting capacity and cost efficiency. Very suitable for small to medium-sized three-phase motors with nominal currents from 18...370 A. Typical applications are, for example, pumps, fans, compressors, and conveyors.

${{shopModel.rebate>0?shopModel.discountPriceStr:shopModel.formattedAmount}} ~~$ {{shopModel.formattedAmount}}~~

COUPON

Quantity：

Estimated Delivery Date: Jun 05 - Jun 05

Frequently Asked Questions

How to inquire about other products I am interested in?

Are the products genuine official originals?

Can the delivery time be shortened?

Specifications

Description

Reviews

Product Overview & Technical Features

The ABB PSE37-600-70 is a compact and cost-effective industrial soft starter adopting two-phase control design. It delivers a maximum rated operating current of 37 Amps and supports main operating voltage from 208V to 600V AC.

Different from high-end three-phase controlled PSTX series with comprehensive diagnostic functions, the ABB PSE series is engineered for space-saving installation and accurate fluid regulation, offering an economical practical solution. Equipped with built-in original torque control technology to effectively prevent water hammer effect, this soft starter has become the preferred standard solution for various pumping system applications.

Parameter	Specification
Product Model	PSE37-600-70
Part Number	1SFA897104R7000
Brand	ABB
Rated Current	37A
Rated Voltage	600V
Product Type	Compact Intelligent Soft Starter
Control Mode	Digital Control
Protection Level	Standard Industrial Protection
Application	Three-phase AC Motor
Origin	Original ABB Factory
Certification	CE, ISO, International Industrial Certification

Technical Specifications

Operational Voltage: 208–600 V AC, 50/60 Hz
Control Supply Voltage: 100–250 V AC
Normal Duty Class 10: 34 A FLA, 20 HP at 460V
Heavy Duty Class 30: 28 A FLA, 15 HP at 460V
Enclosure Rating: IP20 open chassis design
Dimensions: 9.65 in (H) × 3.54 in (W) × 7.30 in (D)
Weight: 5.29 lbs / 2.4 kg

Core Features & Comparison

Torque Control: Optimized voltage and torque ramp control during motor stop process, perfectly suited for liquid pumps, fans and compressors.
Built-in Bypass: Internal contactors switch to bypass solid-state parts at full motor speed, cutting energy consumption and reducing cabinet heat accumulation.
Complete Motor Protection: Equipped with electronic overload protection, underload protection and locked rotor protection for reliable motor safeguard.
Universal Display Interface: Backlit digital symbol display shows parameters, fault codes and operation menus without language restrictions.

Remarks

Product quality: 100% original brand new genuine products, supplied via official channels.
Warranty policy: 1 year official warranty is provided.
Lead time: Standard lead time is 4–6 weeks; the exact delivery time is subject to the factory production schedule at that time.
Prices of industrial control products are subject to market and raw material fluctuations. Please contact online customer service for the latest quotes and delivery times.
