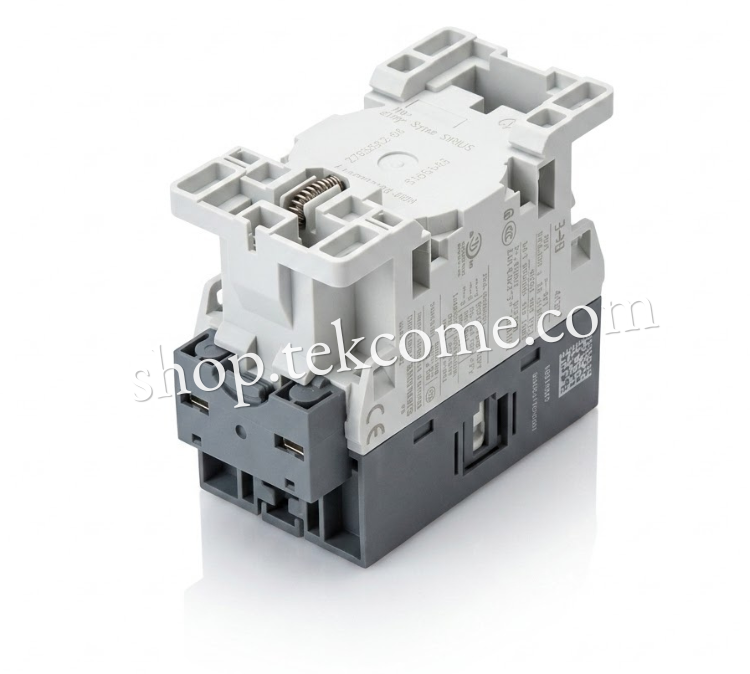

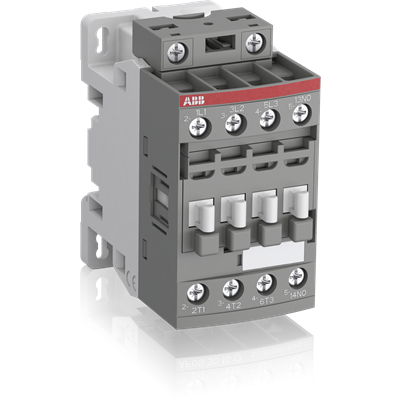

ABB AF09-30-10-12 1SBL137001R1210
The ABB AF09-30-10-12 is a 3-pole non-reversing block contactor. Equipped with an electronically regulated wide-range AC/DC coil, it is ideal for motor startup and general power switching applications.
${{shopModel.rebate>0?shopModel.discountPriceStr:shopModel.formattedAmount}}
$ {{shopModel.formattedAmount}}
Like
{{item.name}} {{item.imgVal}}
Quantity：
Estimated Delivery Date: Jun 05 - Jun 05
Frequently Asked Questions
How to inquire about other products I am interested in?
Are the products genuine official originals?
Can the delivery time be shortened?
Specifications
{{item.name}}
{{item.value}}
Key Specifications
| Item | Parameter |
|---|---|
| Part Number | AF09-30-10-12 |
| Global Product ID | 1SBL137001R1210 |
| Main Poles | 3 Normally Open (3NO) |
| Coil Voltage Range | 48V ~ 130V AC (50/60 Hz) / DC |
| Load Current Rating | 25A (AC-1 general use); 9A (AC-3 motor switching) |
| Motor Control Capacity | 3-phase motor: 4 kW @ 400V (AC-3); 5 hp @ 480V (UL) |
| Auxiliary Contact | 1 Normally Open (1NO), built-in |
| Terminal Type | Standard screw terminals |
| Mounting Style | 35mm DIN rail / Surface mount |
| Enclosure Protection | IP20 |
Core Technical Features
- AF Electronic Coil Technology
The electronic coil tolerates wide voltage fluctuations, lowers panel power consumption, and keeps stable connection under transient voltage drops. - Integrated Protection
Built-in surge suppression protects nearby control circuits, no external varistors or RC blocks required. - Safety & Compliance
Mechanically linked auxiliary contacts and integrated mirror contacts provide reliable feedback for safety-related control applications.
Industrial Scenarios
- Conveyor Systems: Starts and stops small motors powering sorting and packaging belts.
- HVAC Systems: Controls heavy loads for commercial building fans and exhaust blowers.
- Water Pumps: Automates well, irrigation, and drainage pump operations safely.
- Air Compressors: Cycles industrial compressors based on pressure switch signals.
- Packaging Machinery: Powers motorized sealing, wrapping, and labeling equipment lines.
Control Panel Integration
- Motor Starter Enclosures: Combines with thermal overloads for complete motor protection.
- Wide-Voltage Networks: Stabilizes operations in regions with unstable 48V–130V grids.
- Safety Circuits: Uses mirror contacts to feed back contact status to safety relays.
- PLC Interfaces: Connects directly to automation systems for automated machinery control.
- Lighting Panels: Switches large banks of industrial or warehouse high-bay lights.
Watch our real stock video>>
Remarks
- Product quality: 100% original brand new genuine products, supplied via official channels.
- Warranty policy: 1 year official warranty is provided.
- Lead time: Standard lead time is 2–4 weeks; the exact delivery time is subject to the factory production schedule at that time.
- Price: Please contact our customer service for the specific discounted price.
